Palram - Canopia 12x16 Arcadia Alpine Carport Kit
[HG9125]

Palram - Canopia Arcadia Alpine 12' x 16' Carport Kit - Gray (model HG9125)

The Arcadia Alpine 12' x 16' Carport is an excellent solution for protecting your vehicles and oversized vehicles from various outdoor elements. Its impressive 10 ft. clearance makes it particularly suitable for taller vehicles and trailers. The inclusion of virtually unbreakable 6mm polycarbonate roof panels, providing 100% UV protection and additional shade, ensures a durable and protective shelter.

The carport comes with pre-drilled holes, pre-cut panels, and required hardware, along with the anchor kit for securing the carport. The Polycarbonate roof panels have been designed to simply slide into place to eliminates the need for precarious roof work during assembly. The durable construction of powder-coated gray aluminum and galvanized steel frame not only ensures resistance to rust but also makes cleaning hassle-free with just a garden hose. Its snow load capacity of at least 30 lbs/sq. ft. and 75 mph wind load adds to its durability, making it suitable for various weather conditions.

The Alpine carport additional features includes Integrated gutters with downspouts efficiently direct rain away from the sides, preventing water damage to your vehicles. The wide entry with high clearance further enhances convenience, allowing easy access. The option for re-assembly provides flexibility in case of location changes, while the straightforward installation process requiring only two people and no advanced building skills or special tools ensures accessibility for most users. The Arcadia Alpine Carport offers both style and functionality that is perfect for protecting your vehicles.

Features:

• Versatile Tall Design: Curved canopy works as a carport garage or covered lounging area.
• Durable Structure: The anthracite powder-coated aluminum carport frame is a strong, rust and corrosion-resistant metal that includes galvanized steel support beams for added strength and stability.

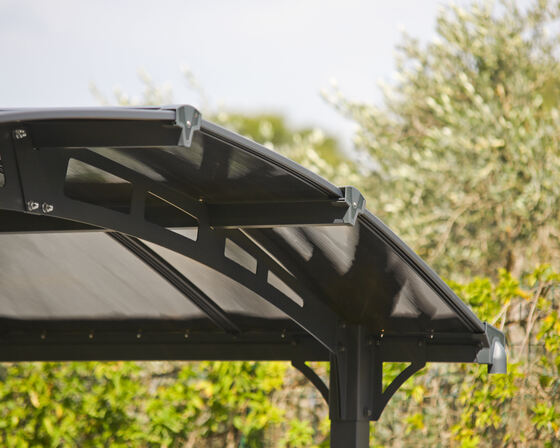

• Resilient Panels: The high impact roof panels are made of 6 mm, opaque grey twin wall polycarbonate. Canopia polycarbonate panels are 100% UV protected, which means that they do not turn yellow or become brittle over time.

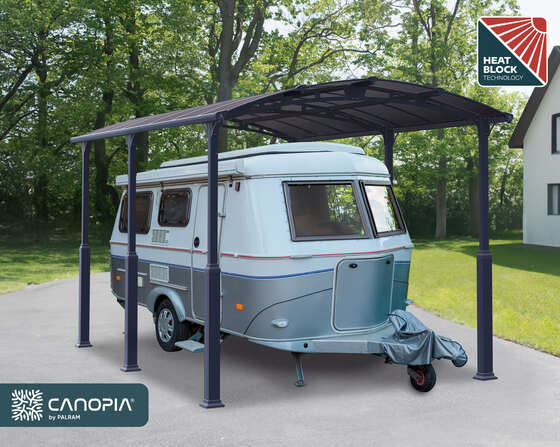

• HEAT BLOCK TECHNOLOGY: Protects your vehicle from harmful UV Rays, interior overheating, and reduces extreme heat EV battery degradation.
• Easy Access: Sturdy and durable, adjustable elevation 3.15" x 3.15" aluminum poles have up to 11'7" entry width and 7'2" overhead clearance.
• Year-Round Weather Resistance: Wind, snow, and hail resistant.
• Built-In Gutters: Includes integrated rain gutters and gutter outlets to direct rainwater.
• Anchoring Kit: Anchoring and foot pads kit included, to secure the carport to a flat surface.
• Self-Assembly: Easy sliding panel system includes pre-drilled profiles, pre-cut sliding panels making assembly as simple as possible.

• 10 Year Limited Warranty
• Free FAST Shipping!

Specifications:

Model: HG9125
Frame Color: Gray
Roof Color: Gray
Style: Carport
Type: Permanent or Portable
Usage: Single Vehicle
Frame Material: Galvanized Steel
Roof Material: twin wall 6mm polycarbonate panels
Nominal Size: 12' Width x 16' Length x 12' Height
Measurements: 141"W x 197"L x 139"H)
Height Measurements: 139" Peak Height, 120" Side Wall Height
Light Transmission : 0%
Square ft. (rounded): 165
Total Product Weight: 400 lbs.
Boxes: 6
Shipping Method:Shipped via LTL Motor Freight Only, Curbside Tailgate Delivery

We recommend checking local buildings and zoning codes and guidelines.
Please ensure that any/all appropriate permits were acquired before installing the product.
Also ensure to install on a flat, leveled surface site for construction with solid base.

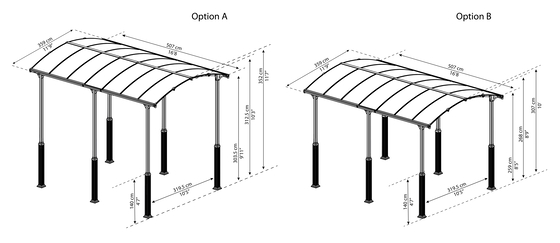

Arcadia 12x16 Alpine Carport Kit Diagram View:



Arcadia Alpine Carport Kit comes with pre-drilled holes, pre-cut panels

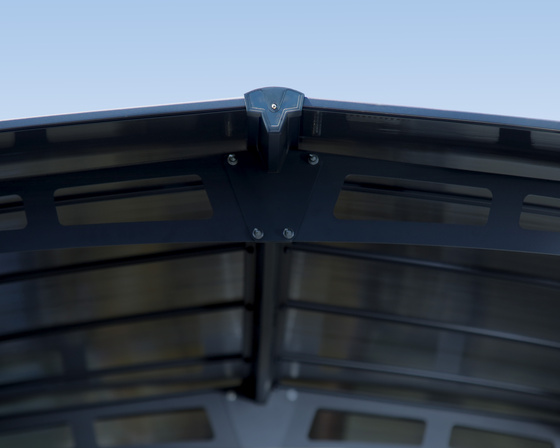

Arcadia Alpine Carport features an aluminum frame provides a durable, strong and corrosion resistant structure

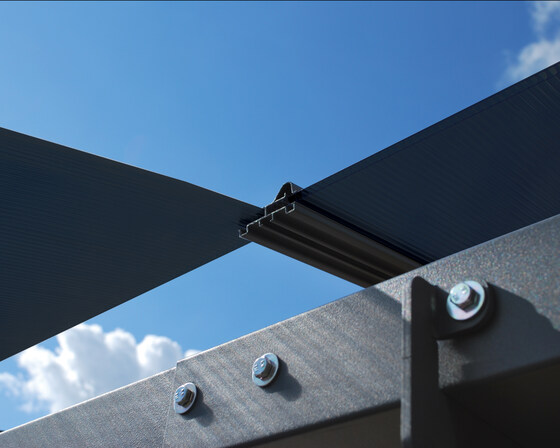

Features easy sliding panel system. Panels slide into place, no climbing on the roof

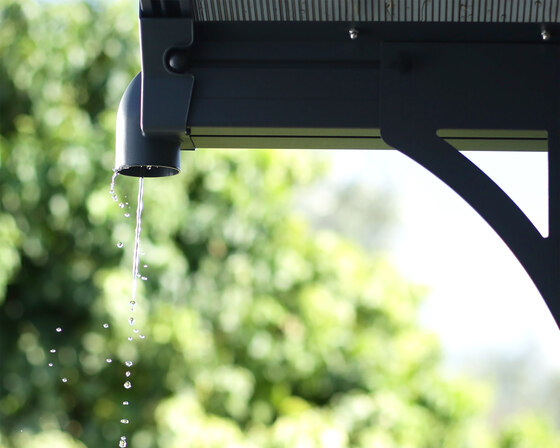

Arcadia Alpine Includes integrated rain gutters and gutter outlets to direct rainwater



Also includes anchoring kit and foot pads to secure the carport to a flat surface



Arcadia Alpine Carport features a durable, powder-coated aluminum and galvanized steel frame that ensures easy assembly. This stylish shelter protects your vehicle, RV, trailer, or oversized vehicle from snow, rain, leaves, and harmful UV rays.
